Products / Sanitation trucks / Electric Self-Loading Refuse Truck — Side Loading
CORLIR · NEW ENERGY SERIES

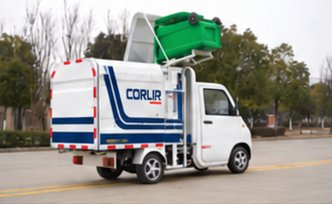

Electric Self-Loading Refuse Truck — Side Loading
A compact electric vehicle for waste collection and transport, retaining self-loading and unloading functions with low-noise electric operation.
Product features
01
Compact electric chassis
02

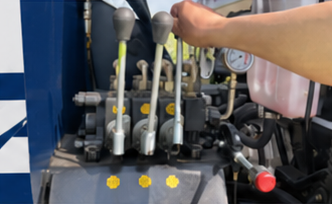

Hydraulic opening and discharge
03
Reliable hydraulics
04
Durable enclosed body
05
Simple operation and maintenance
Operating functions & vehicle details
Technical specifications
Compare the available chassis configurations.
| Item | Xiaoshentong |
|---|---|
| Chassis brand | Tangjun Ouling |
| Capacity (m³) | 3 |
| Gross mass (kg) | 950 |
| Wheelbase (mm) | 2200 |
| Battery type | LFP |
| Battery capacity(kWh) | 6.9 / 8.4 |
| Charging time(min) | Slow 4–5 h |
| Range (km) | 115 |
| Loading time (s) | ≦16 |
| Unloading time (s) | ≦60 |
| Control mode | Electric / remote |
| Loading mechanism | Bin lifter |
| Compatible bins (L) | 120/240/660 |
— Not specified. Values are reproduced as listed in the product catalogue. † Capacity and working-performance units require confirmation. Please confirm missing data, units and final specifications when requesting a quotation.
Discuss your fleet requirements
Tell us your destination, quantity and preferred configuration.
