Products / Sanitation trucks / Electric Self-Loading Refuse Truck — Rear Loading
CORLIR · NEW ENERGY SERIES
Electric Self-Loading Refuse Truck — Rear Loading
An electric rear-loading refuse vehicle with hydraulic bin lifting and body tipping for municipal waste collection and transfer.
Product features
01
Electric chassis and body
02

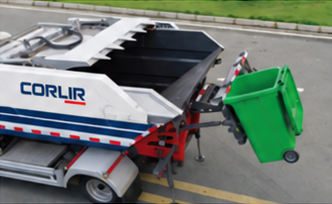

Rear bin loading
03

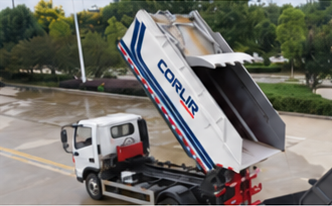

Hydraulic body tipping
04
Enclosed waste transport
05
Simple operating controls
Operating functions & vehicle details
Technical specifications
Compare the available chassis configurations.
| Item | Dongfeng Huashen | SAIC Yuejin |
|---|---|---|
| Chassis brand | Dongfeng | SAIC |
| Capacity (m³) | 4.5 | 4.5 |
| Gross mass (kg) | 4495 | 4495 |
| Wheelbase (mm) | 2800 | 2850 |
| Battery type | CATL LFP | CATL LFP |
| Battery capacity(kWh) | 55.7 | 66.8 |
| Charging time(min) | Fast 40 | Fast 90 |
| Range (km) | 220 | 260 |
| Loading time (s) | ≦16 | ≦16 |
| Unloading time (s) | ≦60 | ≦60 |
| Control mode | Electric / remote | Electric / remote |
| Loading mechanism | Bin lifter | Bin lifter |
| Compatible bins (L) | 120/240/660 | 120/240/660 |
— Not specified. Values are reproduced as listed in the product catalogue. † Capacity and working-performance units require confirmation. Please confirm missing data, units and final specifications when requesting a quotation.
