Products / Sanitation trucks / Electric Refuse Compactor
CORLIR · NEW ENERGY SERIES
Electric Refuse Compactor
An electric refuse-collection and transfer vehicle with the functions of a conventional compactor, combined with low-noise electric operation and intelligent controls.
Product features
01
Electric chassis and optimized body
02

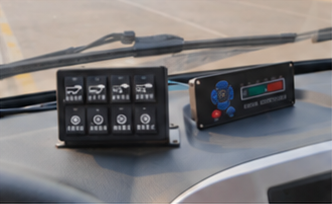

Digital and remote controls
03
Standardized assembly
04
Efficient compaction
05

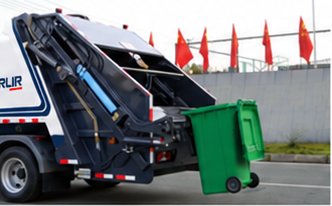

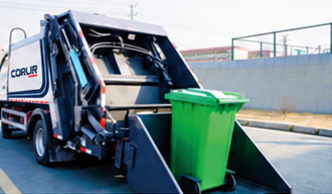

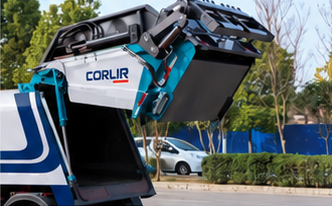

Flexible rear loading
06
Durable hydraulic system

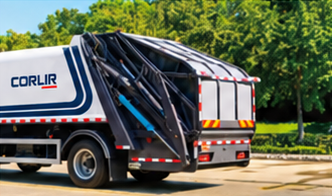

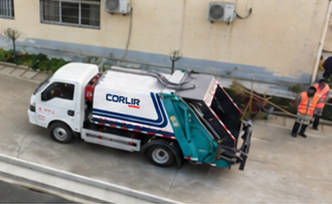

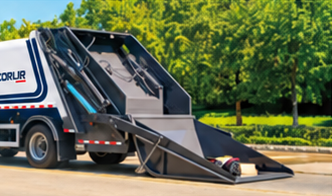

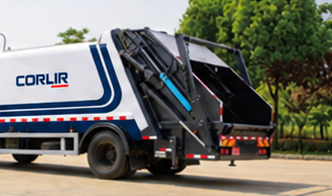

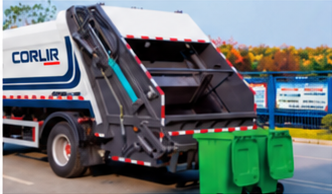

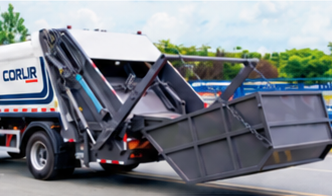

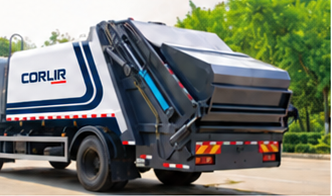

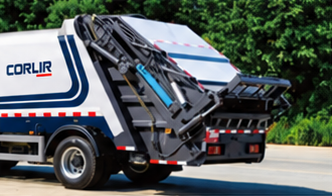

Operating functions & vehicle details
Technical specifications
Compare the available chassis configurations.
Configuration group 1
| Item | Dongfeng Huashen | Dongfeng Tuyi | SAIC Yuejin |
|---|---|---|---|
| Chassis brand | Dongfeng | Dongfeng | SAIC |
| Capacity (m³) | 5.2 | 5.2 | 7 |
| Gross mass (kg) | 4495 | 4495 | 8495 |
| Wheelbase (mm) | 2800 | 2800 | 3308 |
| Battery type | CATL LFP | CATL LFP | CATL LFP |
| Battery capacity(kWh) | 55.7 | 55.7 | 106.95 |
| Charging time(min) | Fast 40 | Fast 40 | Fast 90 |
| Range (km) | 220km | 220 | 140 |
| Hopper capacity (m³) | — | — | — |
| Wastewater tank (m³) | — | — | — |
| Control system | Manual / electric / remote | Manual / electric / remote | Manual / electric / remote |
| Cycle time (s) | 18-22 | 18-22 | 18-22 |
Configuration group 2
| Item | Dongfeng Furika Hybrid | Dongfeng Captain | Dongfeng Tianjin | SINOTRUK |
|---|---|---|---|---|
| Chassis brand | Dongfeng | Dongfeng | Tianjin | SINOTRUK |
| Capacity (m³) | 10.5 | 11.5 | 15 | 15 |
| Gross mass (kg) | 11995kg | 8995 | 18000 | 18000 |
| Wheelbase (mm) | 3970 | 3800 | 4500 | 4500 |
| Battery type | LFP | CALB | CATL LFP | CATL LFP |
| Battery capacity(kWh) | 17.2 | 144.86 | 282 | 210.56 |
| Charging time(min) | Fast 40 | Fast 90 | Fast 72 | Fast 72 |
| Range (km) | Diesel / electric hybrid | 320 | 183 | 100 |
| Hopper capacity (m³) | — | — | — | — |
| Wastewater tank (m³) | — | — | — | — |
| Control system | — | Manual / electric / remote | Manual / electric / remote | Manual / electric / remote |
| Cycle time (s) | 18-22 | 18-22 | 18-22 | 18-22 |
— Not specified. Values are reproduced as listed in the product catalogue. † Capacity and working-performance units require confirmation. Please confirm missing data, units and final specifications when requesting a quotation.
